Installing Railo and ColdFusion on IIS
It has been ages since I’ve setup ColdFusion with IIS and at my new job we’re also using Railo. Last week we worked through the installation process for getting both Adobe ColdFusion and Rail connected to IIS. I thought I’d blog about it here as it may be helpful to others.
Environment
- Windows 7
- IIS 7
- ColdFusion 9
- Railo 4
HOSTS File
Edit your hosts file (C:\Windows\System32\drivers\etc\hosts) and add the following:
- 127.0.0.1 a.local
- 127.0.0.1 r.local

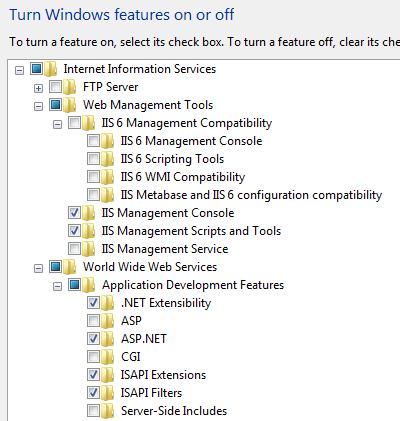

Install IIS
- Click Control Panel > Programs > Turn Windows Features on or off.
- Install IIS with these options
Configure IIS
- Verify configuration
- For: IIS Metabase and IIS 6 configuration compatibility
- 32bit Windows - off
- 64bit Windows - on
- For: IIS Metabase and IIS 6 configuration compatibility
- Open IIS Management Console
- Delete default website and setup two new sites.
- Adobe (C:\inetpub\wwwroot\adobe) a.local
- Railo (C:\inetpub\wwwroot\railo) r.local
- Create an index.html file and place a copy in each root /coldfusion/index.html & /railo/index.html
- Verify IIS responds to both http://a.local and http://r.local
- Delete default website and setup two new sites.
While you can organize your directories how you like - this guide assumes you have created the two directories under the webroot.
Install ColdFusion
- Select “Use internal web server”
- Verify you can access the local ColdFusion administrator on port 8500: http://127.0.0.1:8500/CFIDE/administrator/index.cfm
- Run the Unofficial Updater to patch ColdFusion
Install Railo (NOT Express)
- During Railo installation it will connect to IIS
- Verify Railo installed correctly by creating C:\inetpub\wwwroot\railo\index.cfm

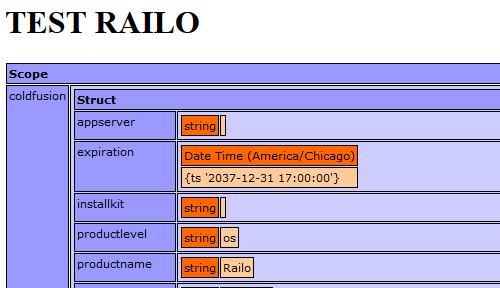

Test Railo
:::cfm
<cfdump var="#server#" />
- Verify the dump for Railo information at http://r.local
Configure ColdFusion

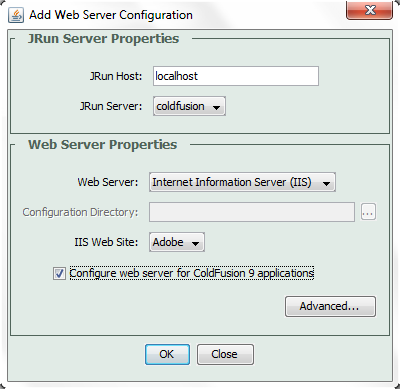

- Run the ColdFusion web connector: C:\ColdFusion9\runtime\bin\wsconfig.exe
- Select the “Adobe” IIS Website (which you created above)
- Click “Configure web server for ColdFusion 9 applications”
- Click OK

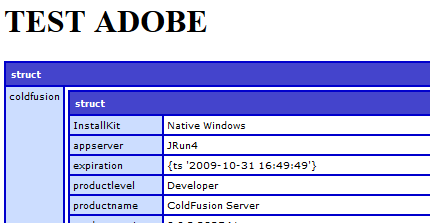

Test ColdFusion
- Create an index.cfm in C:\inetpub\wwwroot\adobe directory with a cfdump tag
- Verify http://a.local/index.cfm returns a proper ColdFusion dump (NOT a Railo dump!)
Troubleshooting
- http://boncode.net/connector/webdocs/Tomcat_Connector.htm#_Toc349117812
- If you continue to get the “Bon Code” error try re-registering ASP.net. Re-register asp.net under the correct .net version, run command:
C:\Windows\Microsoft.NET\Framework64\v4.0.30319\aspnet_regiis.exe -i
